Ceiling
lift
Drop-down range telescopic
Features
- Vertical lifts
- Most recently selected position stored in memory
- Self-learning, intelligent control
- Remote controllable
- Low noise and power consumption
- Dynamic overload protection
- TV on/off detection

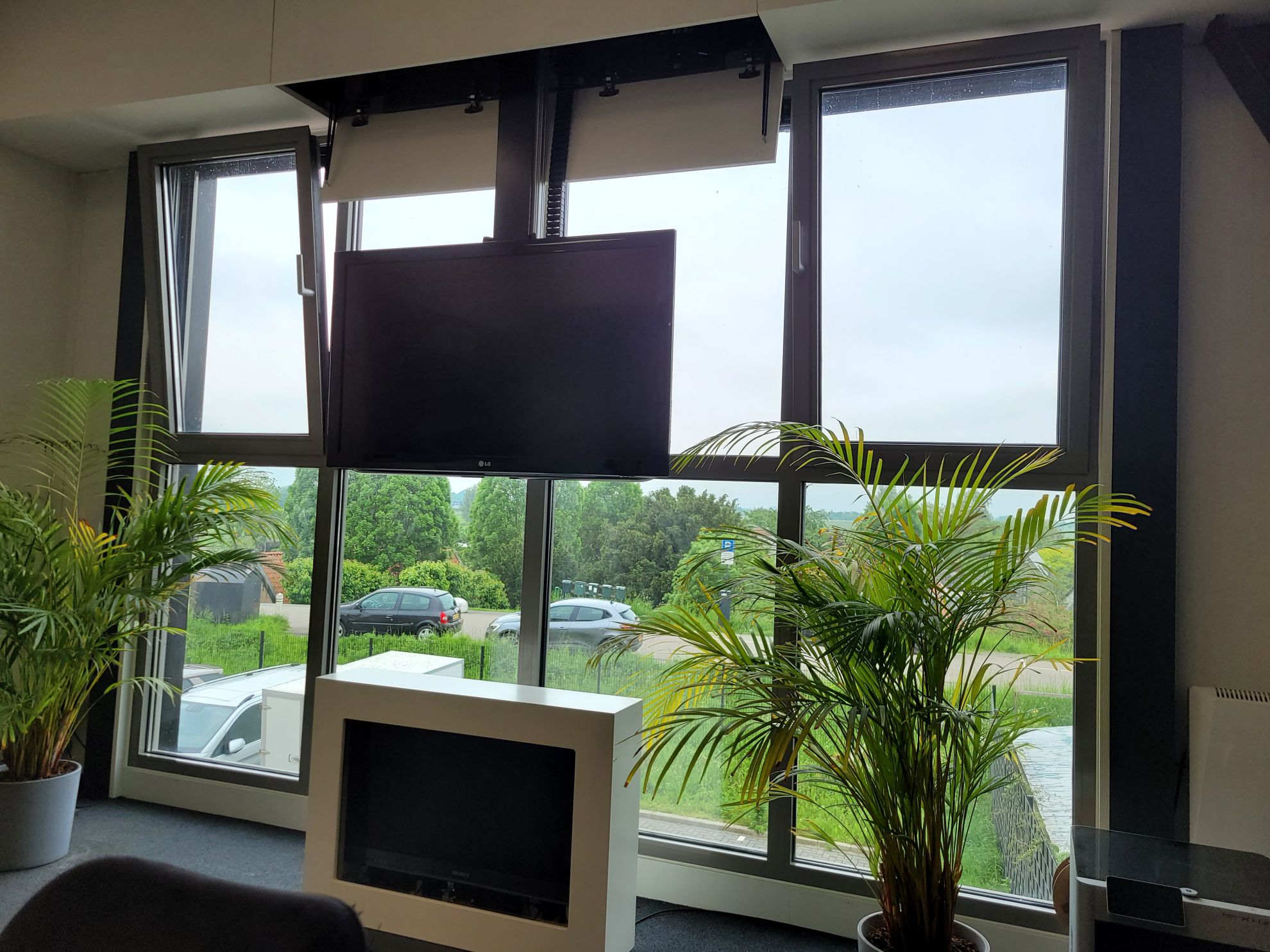

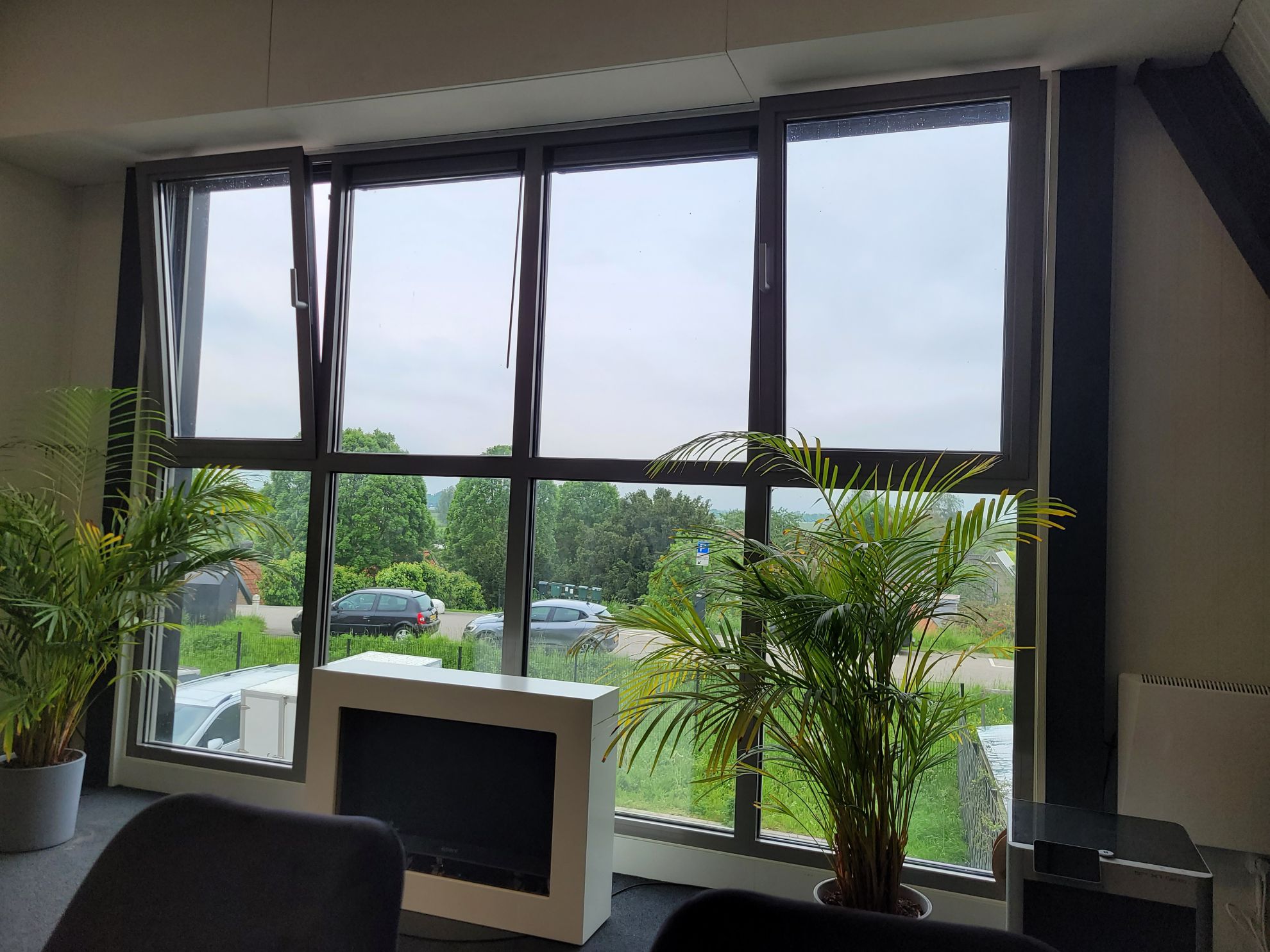

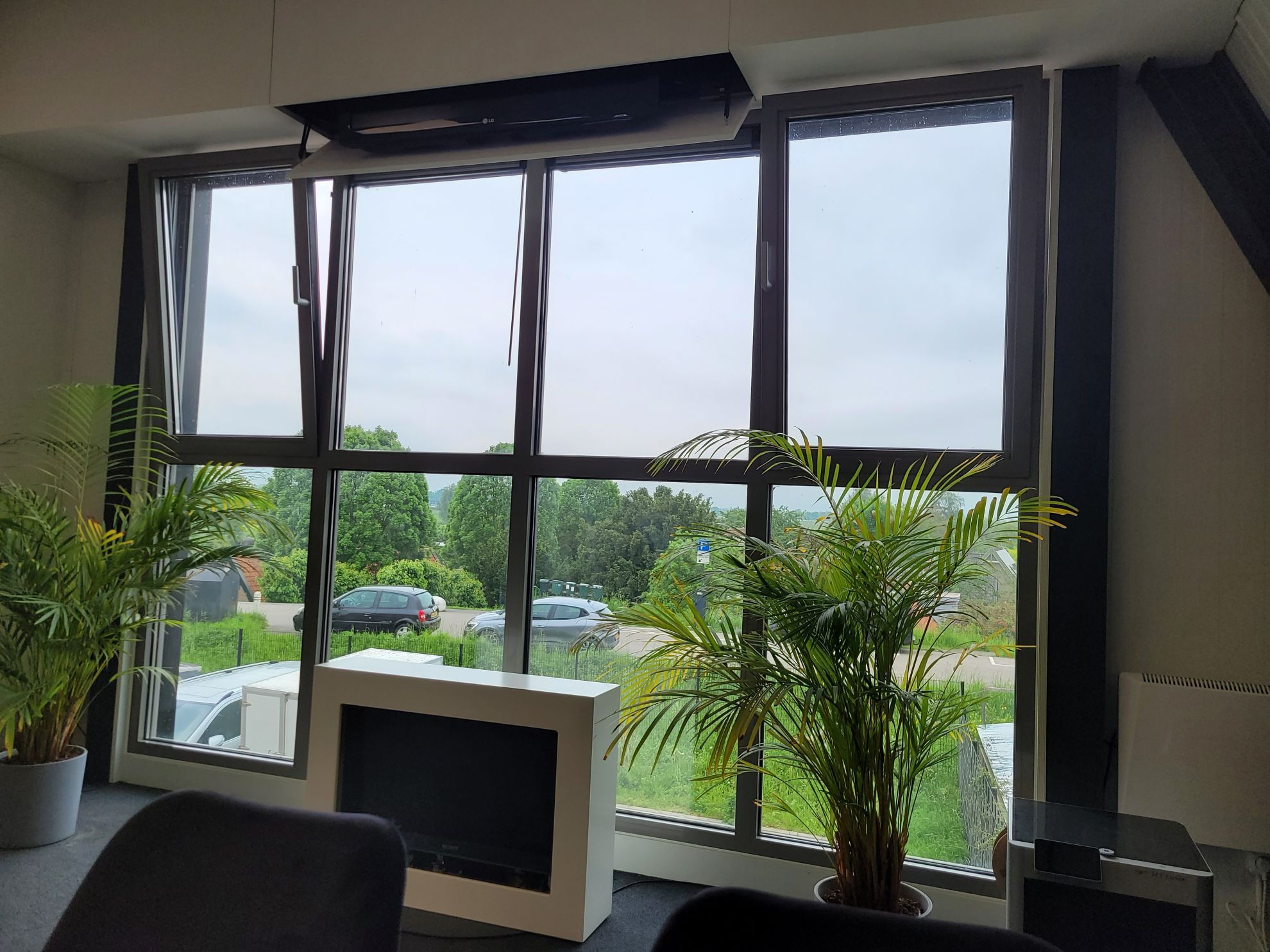

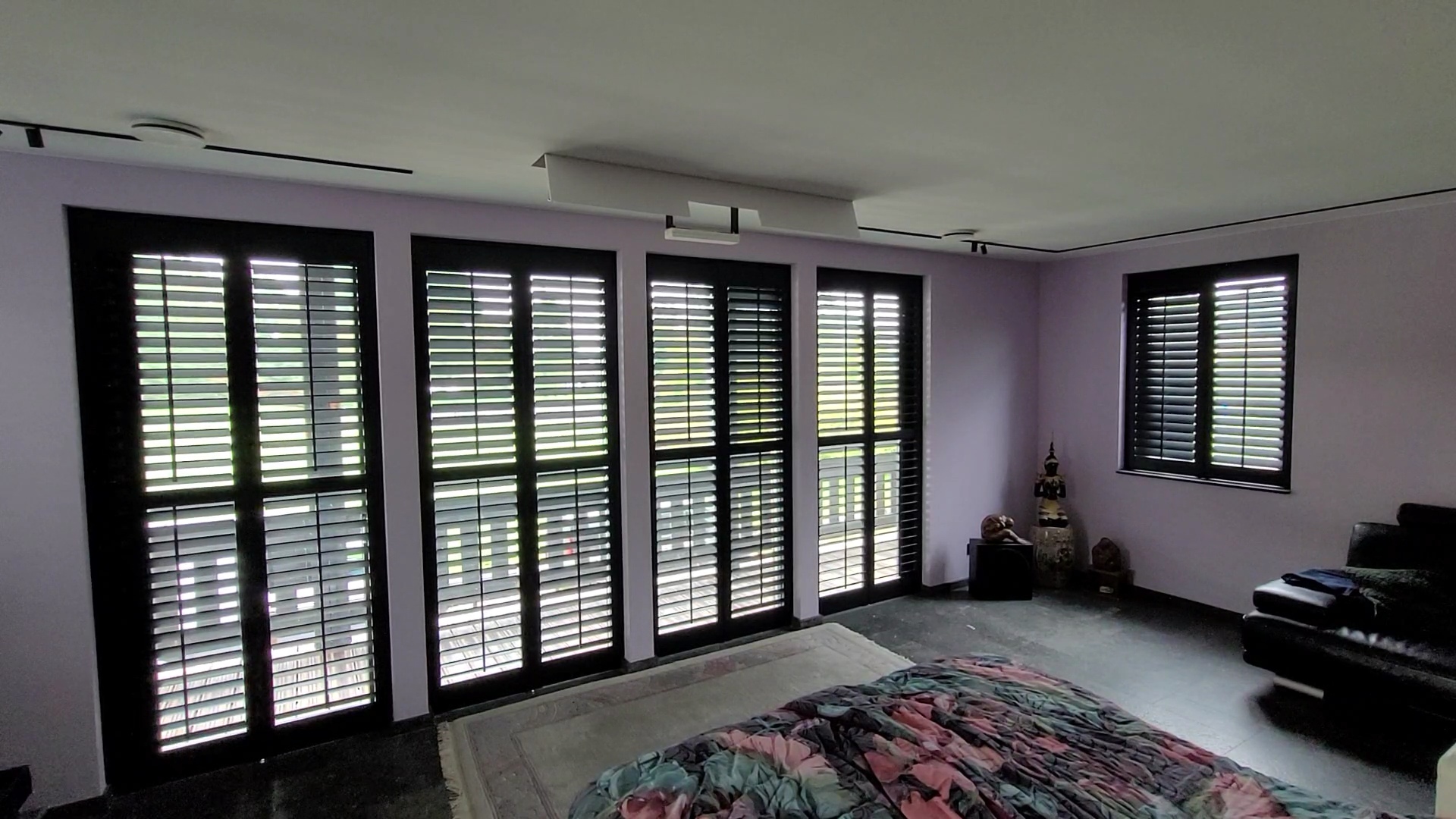

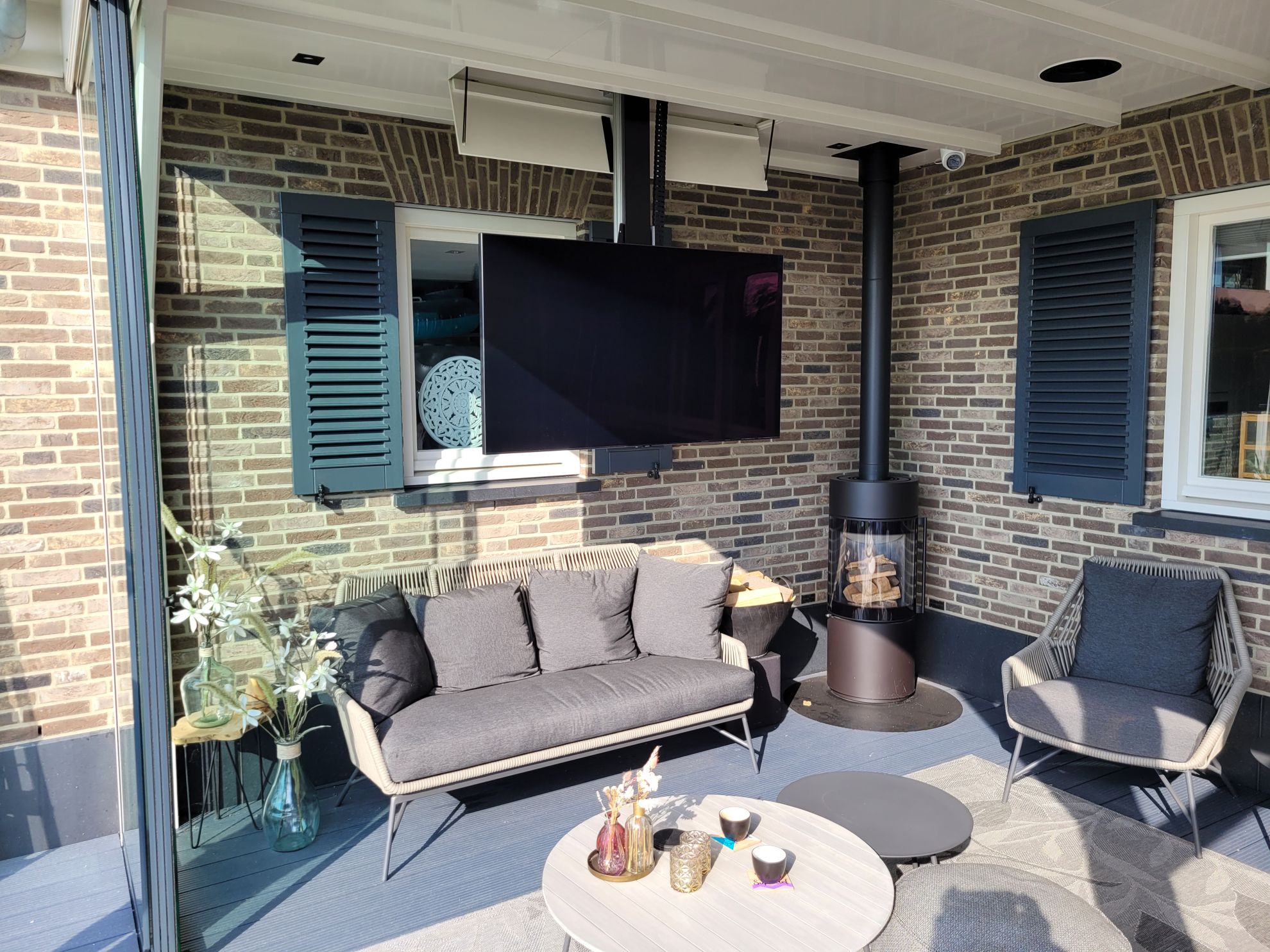

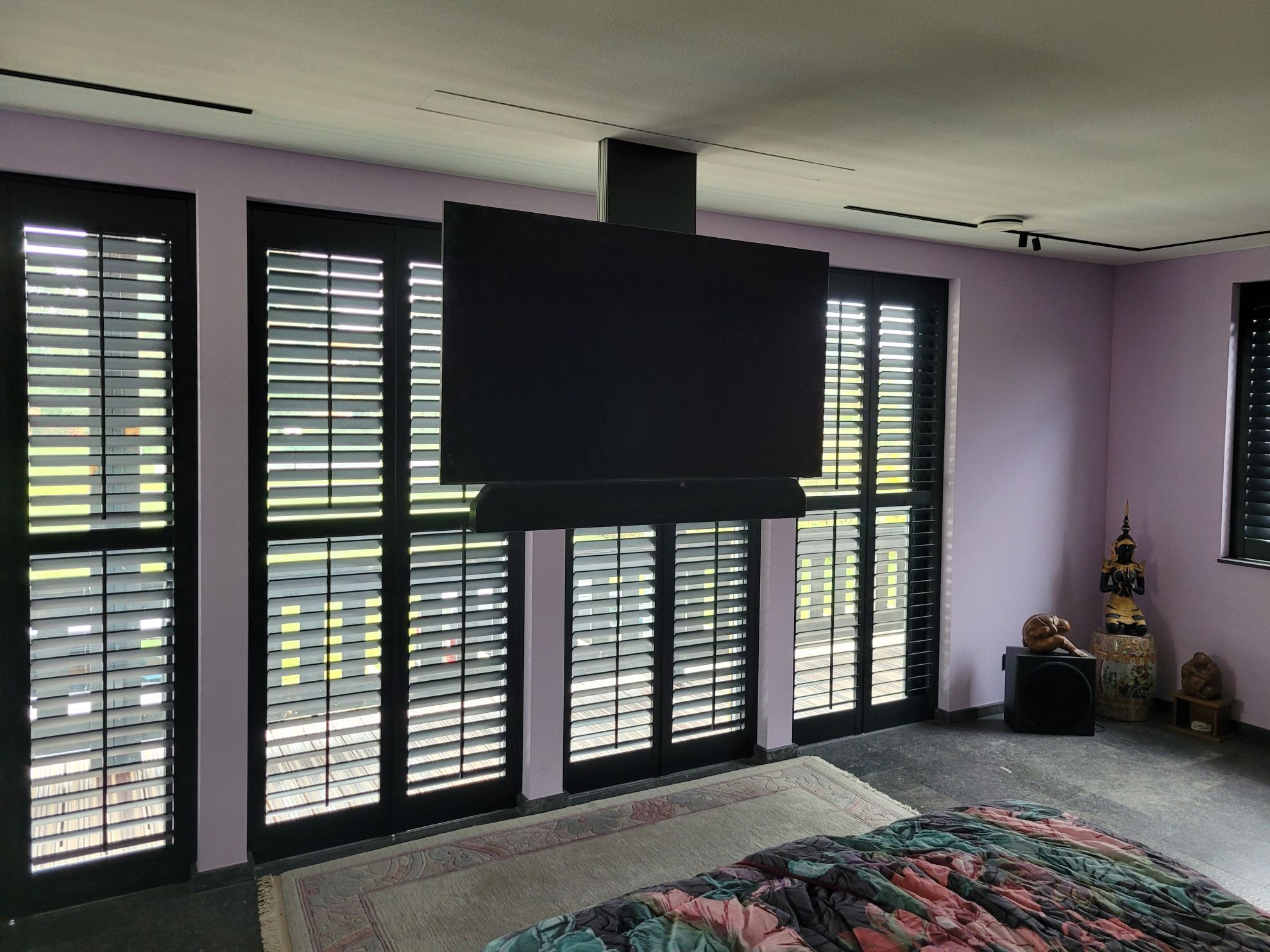

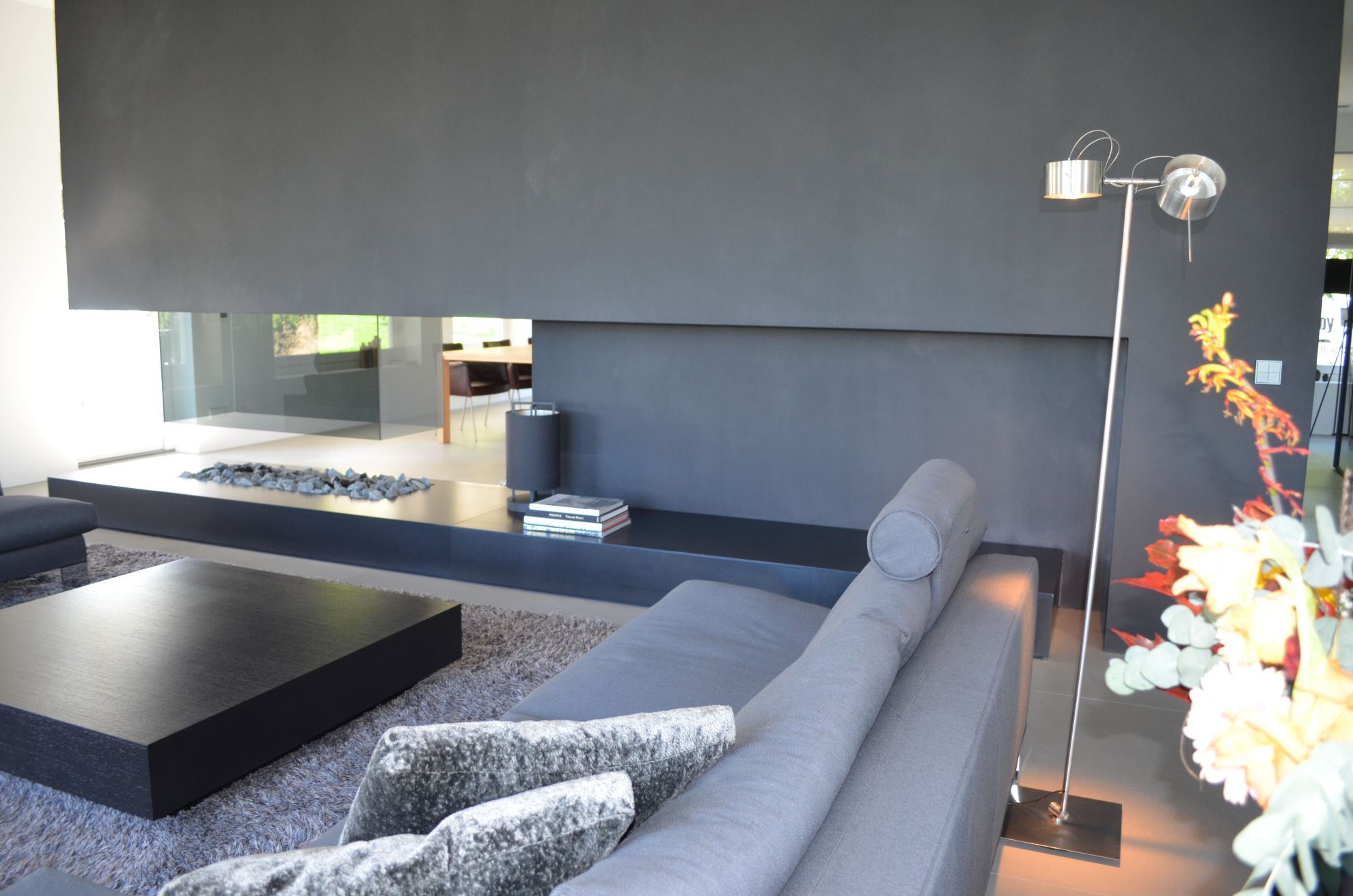

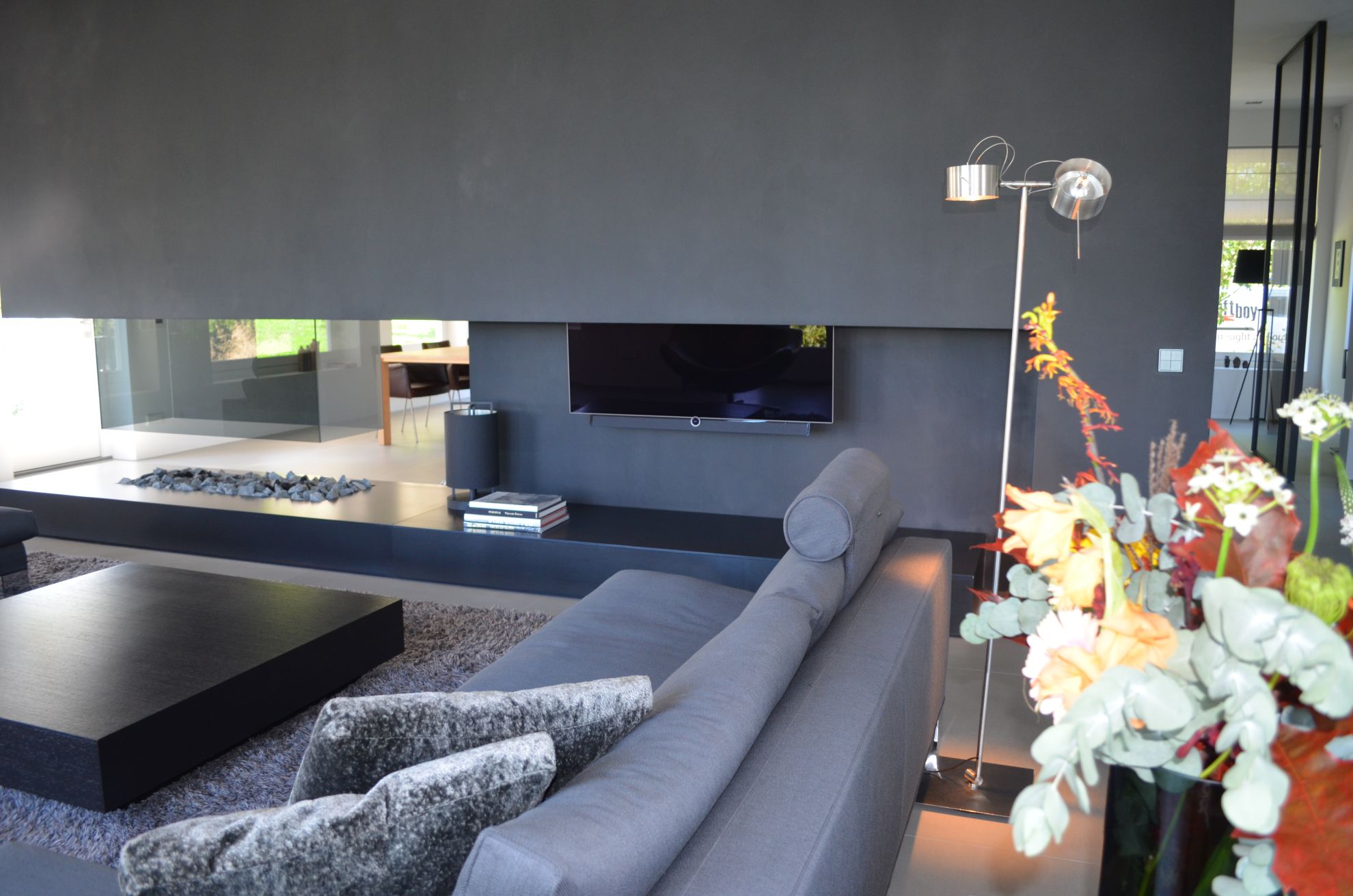

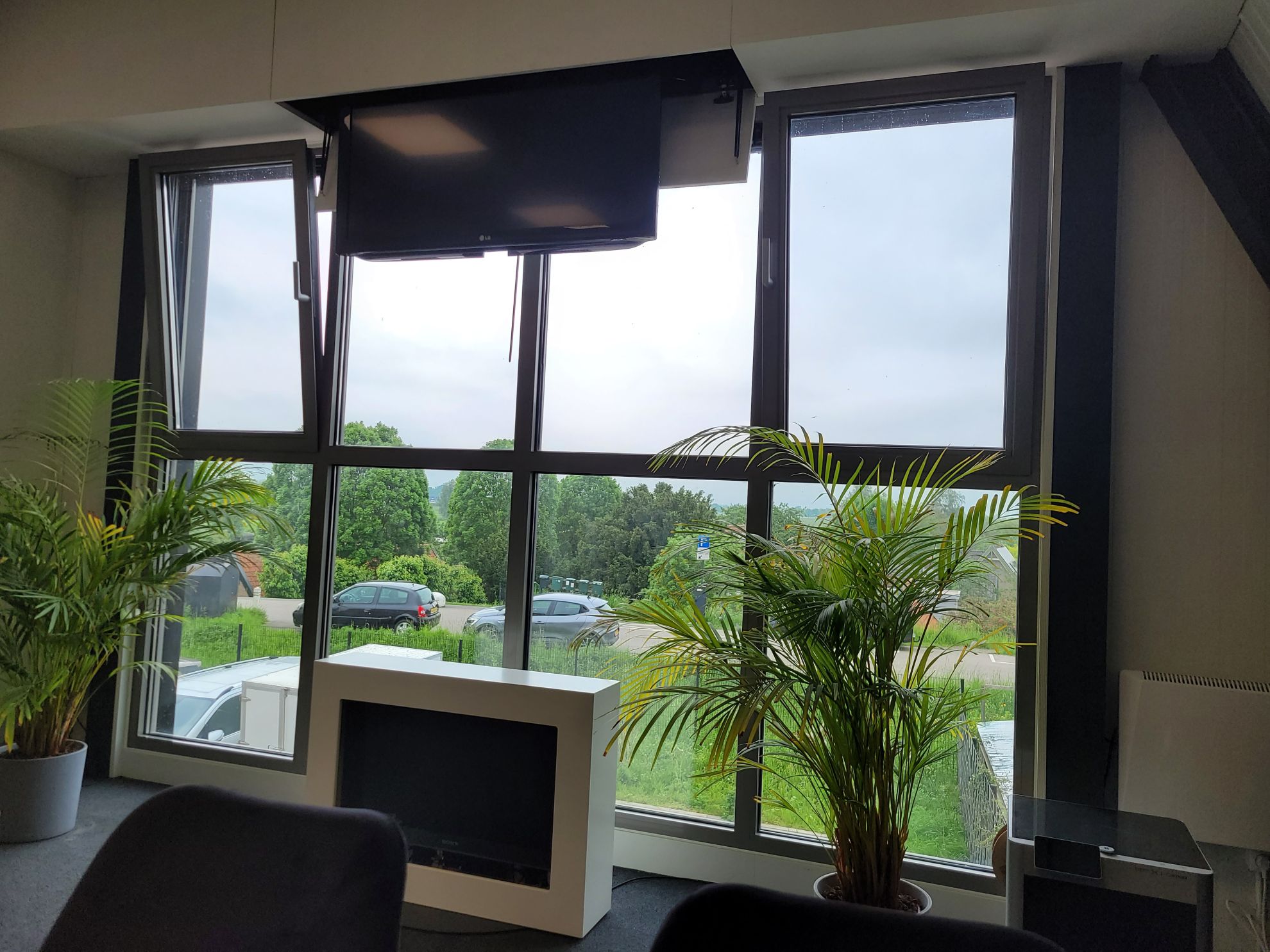

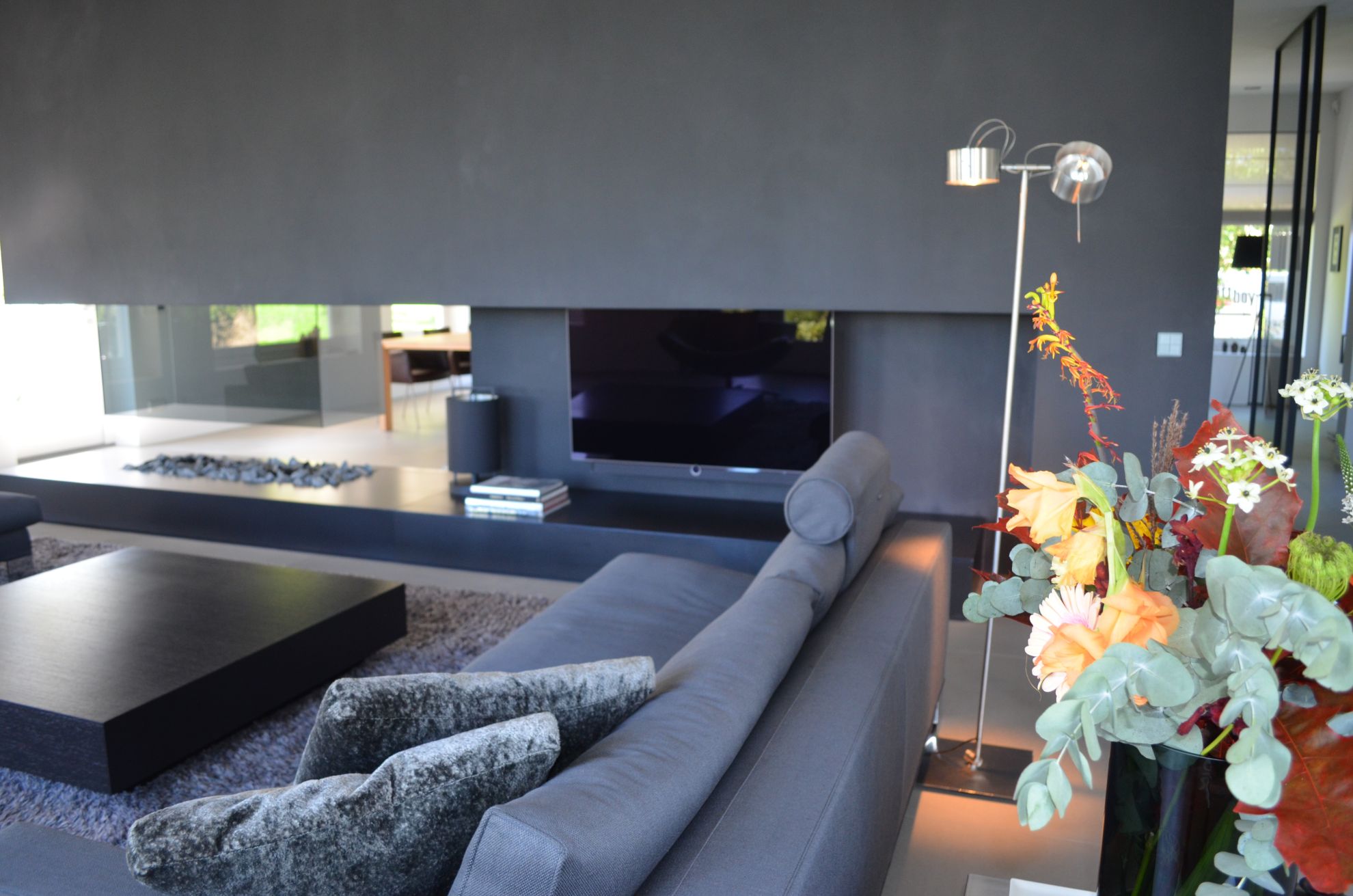

Ceiling TV lifts in pictures
FAQ
Every TV-lift comes with a standard warranty of two years. You can also count on good service in the interim. If you have any problems or questions, you can always contact us.
Het gat in de vloer is afhankelijk van de grootte van de TV, met de daarbij passende TV-lift. Voor vloertekeningen, downloads en meer informatie bekijk de pagina floorlift
Yes, depending on the television size and weight, we recommend the cassette frame size. A TV cabinet is made to measure and can be painted in any RAL colour. If you have particular requirements for a TV cabinet, we will discuss them with our furniture maker. Contact us to discuss the possibilities, where we look at the best situation that suits your home.
Yes, you can, but take into account the total weight (TV and soundbar) and whether the TV lift has enough stroke to lift TV and soundbar out of the cabinet.
If you also want to use the soundbar to listen to music alone, you might consider incorporating it permanently into the cabinet front.
TVLIFTBOY only installs floor lifts and TV lifts from our Cassette range. Other TV lifts are delivered to you. You can install the TV lift yourself with the help of our manual. If you wish, you can also choose to hire a professional from your area.
Downloads
Extra information
Type number | T017-1000 | T017-1200 | T017-1500 |
Type of lift | |||
Installation frame | no | no | no |
Max. TV weight (kg) | 35 | 35 | 35 |
Installation height/depth (mm) | 720 | 820 | 970 |
Travel (mm) | 1000 | 1200 | 1500 |
VESA | 200/300/400 | 200/300/400 | 200/300/400 |
Standard travel adjustable | no | no | no |
Integrated flap | no | no | no |
Electrically operated flap | no | no | no |
Swivel function | no | no | no |
Standard operation | RF | RF | RF |
